Standard function
New parts search function

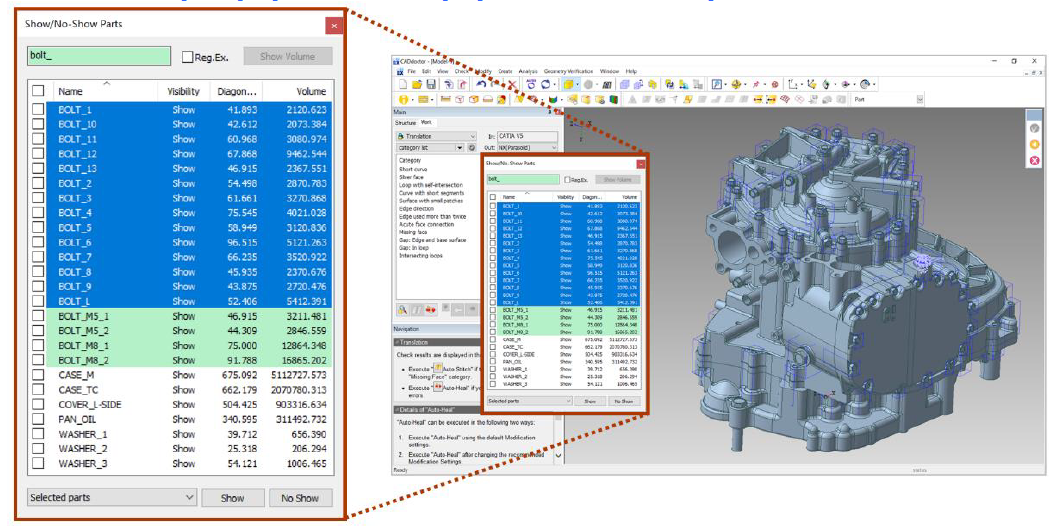

Added the function of searching parts from part names, which can be used to search parts by conventional methods;
Support sorting parts by part name or volume in the search dialog;
Enhanced section cutting function

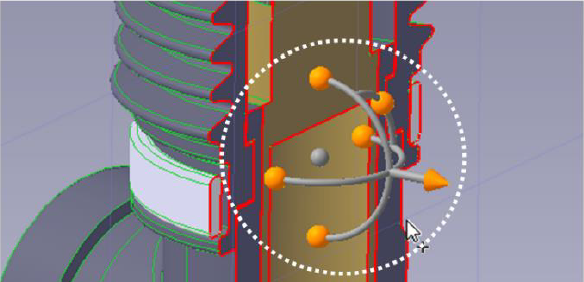

Enhanced the ability to edit cross sections using manipulators;

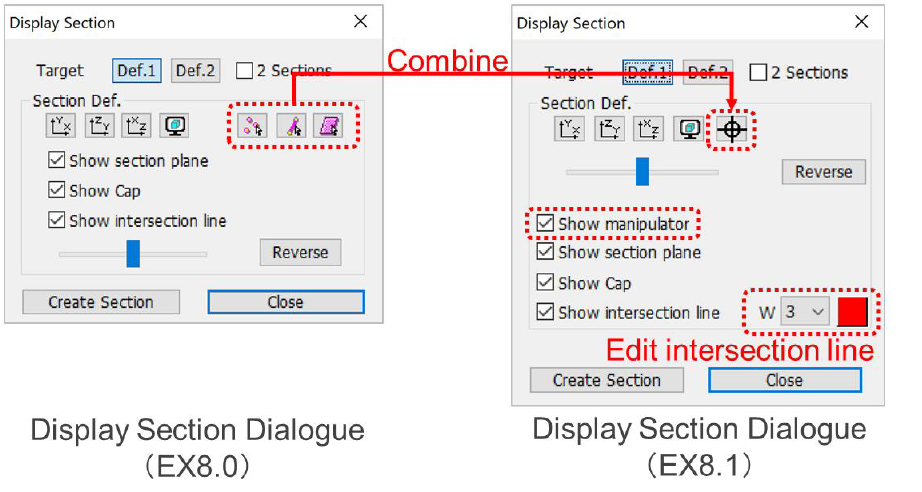

Combine the three commands that define the section into one command;
Enhanced the function of editing the color and line width of intersecting lines;
Added face segmentation function
Added the function of dividing the plane according to the selected plane;
Added new view function "Axis Alignment"
Added the function of changing the view direction to one of the X, Y and Z axes closest to the current view direction;
Geometric simplification
Enhanced the function of replacing with simple shapes

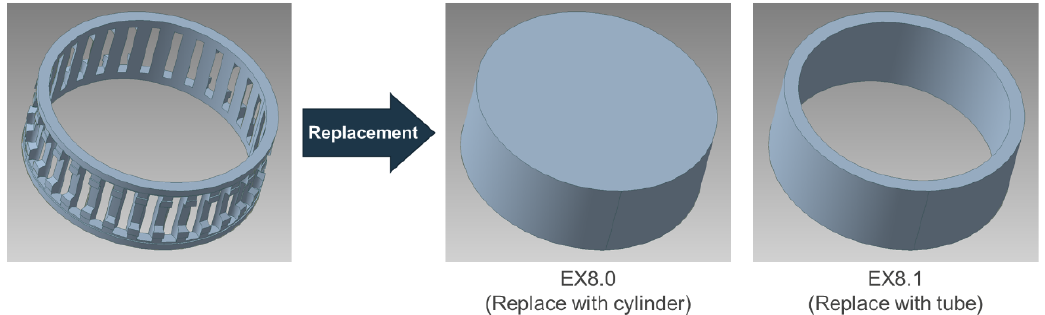

Enhanced the function of cylinder replacement, so that the original geometry can be replaced with a pipe model with holes instead of a cylinder;
Support setting layer number to replacement geometry
When using this function, the configuration function in the options panel is enhanced;
Enhanced closed entity function
Improved the success rate of geometry restoration and added a configuration to prevent free edges;
Enhanced the function of removing all holes and grooves
Support to remove grooves and holes with specified maximum diameter size;

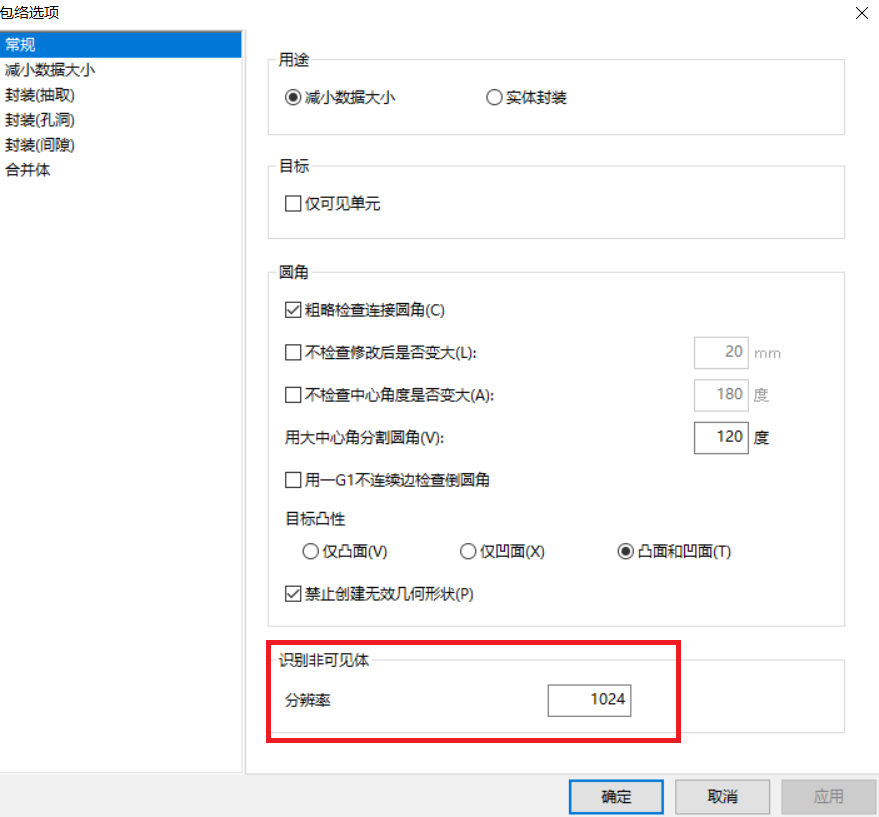

Enhanced removal of invisible volume
Support to specify the resolution setting of invisible volume;
Enhanced the ability to extract faces around gaps
When using the "Copy Face to Right View" function in dual view mode, multiple faces can be copied;
Data conversion
Support update for CAD data version
Import and export options |
The latest supported CAD version |
Supported version |
CATIA V5 |
R29(V5-6R2019) |
R7-R29(V5-6R2019) |
NX |
NX 1847 Series,NX 1872 Series |
UG10-NX 1872 Series |
Creo Parametric |
6.0 |
2000i-Creo Parametric 6.0 |
Parasolid |
V31.0,V32.0 |
v7-v32.0 |
ACIS |
R29 |
R6-R29 |
JT |
V10.5 |
V6.4-V10.5 |
