CADdoctor for Autodesk Moldflow can repair and optimize CAD data and simplify the simulation process of Moldflow. It supports the import of various CAD formats, simplifies CAD data, and improves the efficiency of pre-processing.
The CADdoctor of Autodesk®Moldflow® is a tool to simplify the simulation process in Autodesk®Moldflow®,using the industry-leading data processing technology of CADdoctor, it provides help to convert Autodesk®Moldflow® and optimize 3D CAD data.
Regardless of format or quality, data can be successfully converted and imported to improve simulation efficiency.

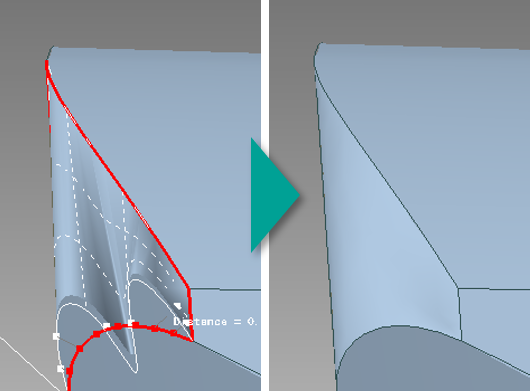

Repairing free edges
Avoiding free edges by splitting or removing thin surfaces, which reduces the time and cost of repairing geometric errors (such as free edges).
Automatic Simplification
Automatic deletion of unnecessary words and small rounded corners in simulation can speed up the pre-processing process and obtain accurate results.
Standard function
Data Quality Inspection and Repair
3D data conversion is an important part of product life cycle, which is the basis of maximizing the use of 3D data. CADdoctor for Autodesk Moldflow can automatically check and repair the geometric quality of digital models.
Model
quality repair
Geometric simplification

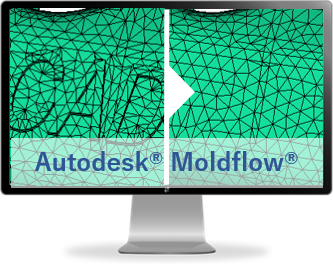

Geometric simplification is used to remove rounded corners, chamfers, and words before meshing. It can maximize the use of 3D data.
Model geometric simplification
Create the middle surface
The middle face function is create a solution for extracting the middle face from entity model.
Supporting the import of multiple formats
CADdoctor for Autodesk Moldflow can also support CATIA V5, NX, Creo Parametric, Parasolid, JT,Support the import of ACIS, STEP and IGES data formats.
