Many companies are moving to model-based definition workflows. One of the biggest obstacles faced by these companies is the platform that ensures the quality and integrity of shared data. Elysium is based on the desire to make CAD data easier to exchange while maintaining maximum fidelity. Explore some of our solutions, and if you have any questions, please contact us.

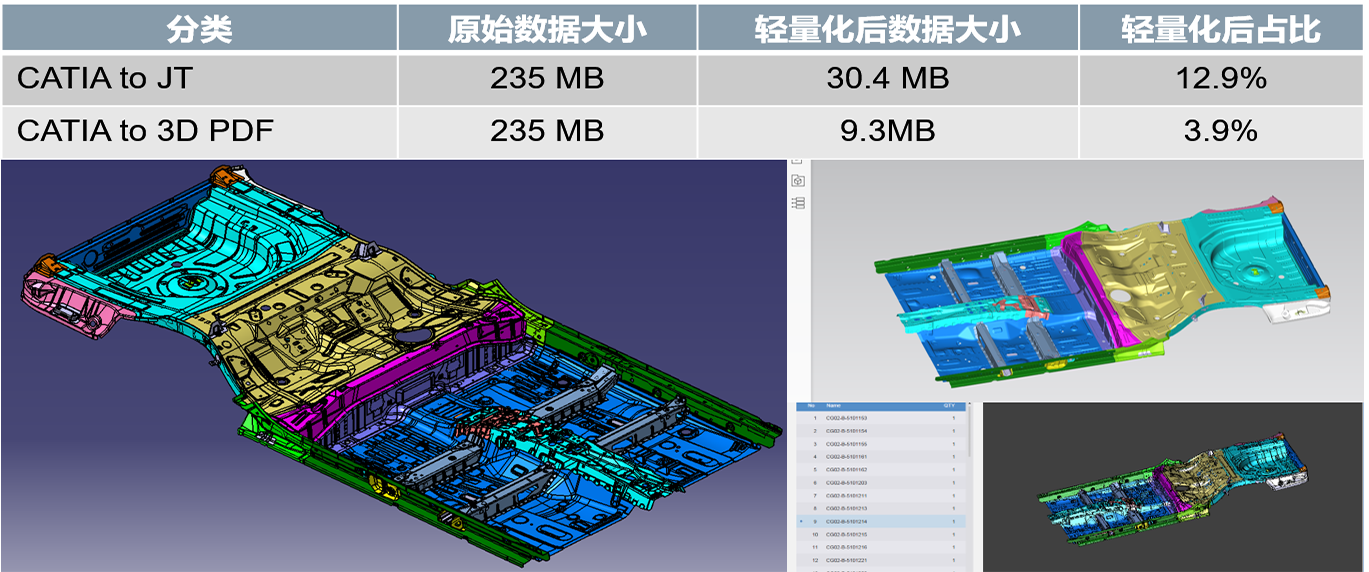

Data formats can be converted without sacrificing quality, so as to achieve data collaboration between various CAD software and common formats.Through a common and reliable data conversion platform, customers can use data more quickly

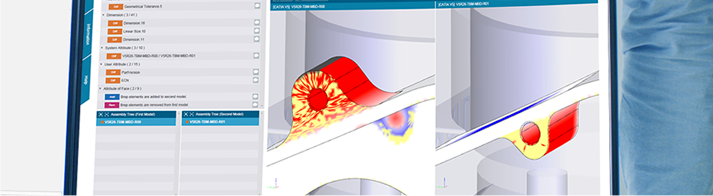

Compare two CAD files to determine inconsistencies between geometry, 3D annotations, properties, and so on. Change detection/Management

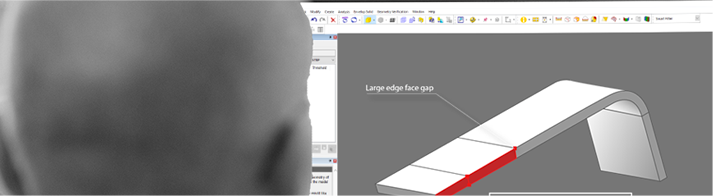

Perform mathematical quality checks on design data to ensure correct geometric information for use in downstream industries such as manufacturing.At the same time through customer quality inspection, reduce engineering changes in the design, improve work efficiency

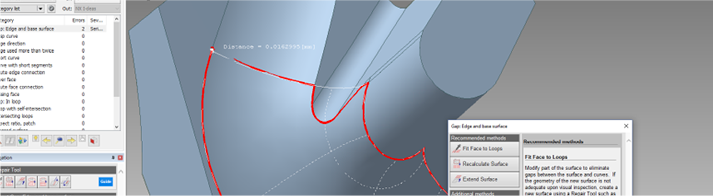

In view of the PDQ errors detected, the CAD data was repaired to ensure correct geometric information

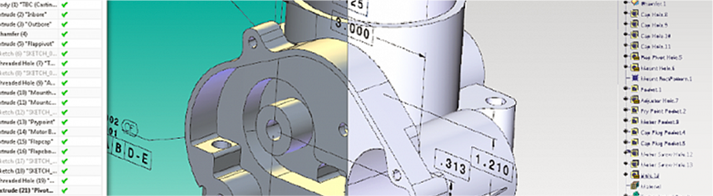

If necessary, migrate legacy CAD data, including precise geometry, properties, 3D annotations, constraints, and even feature history.

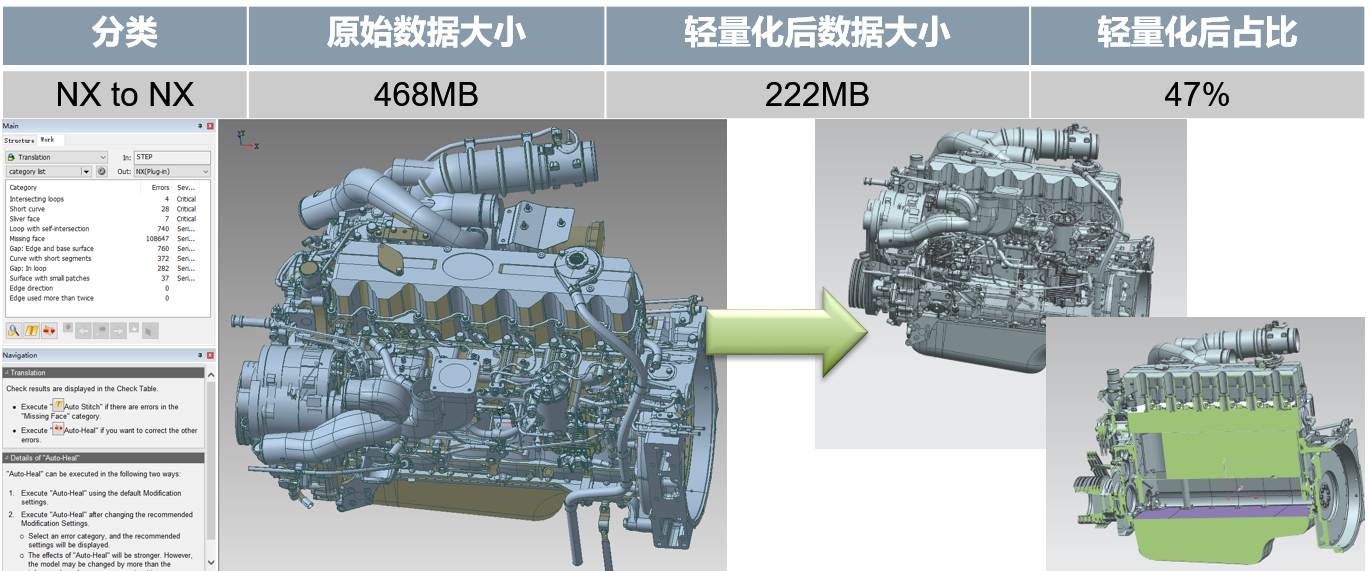

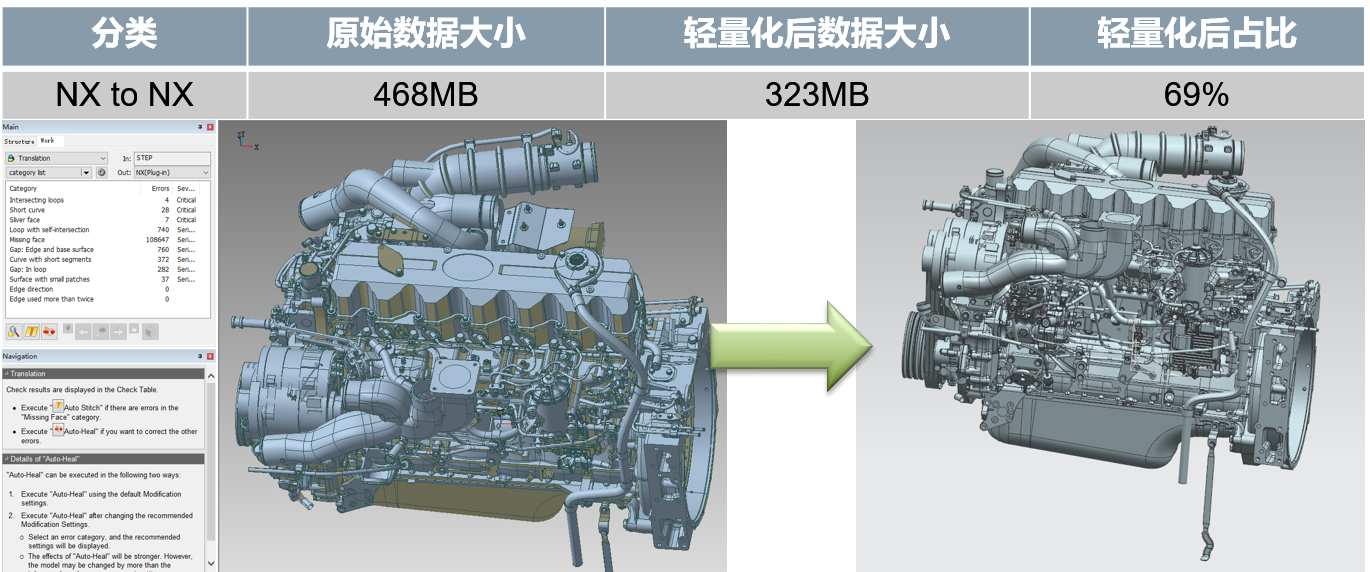

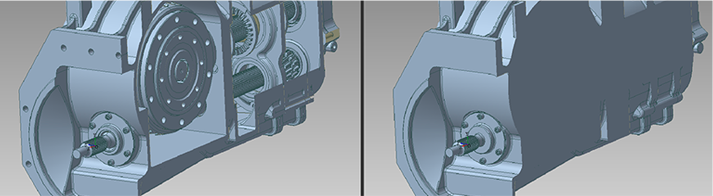

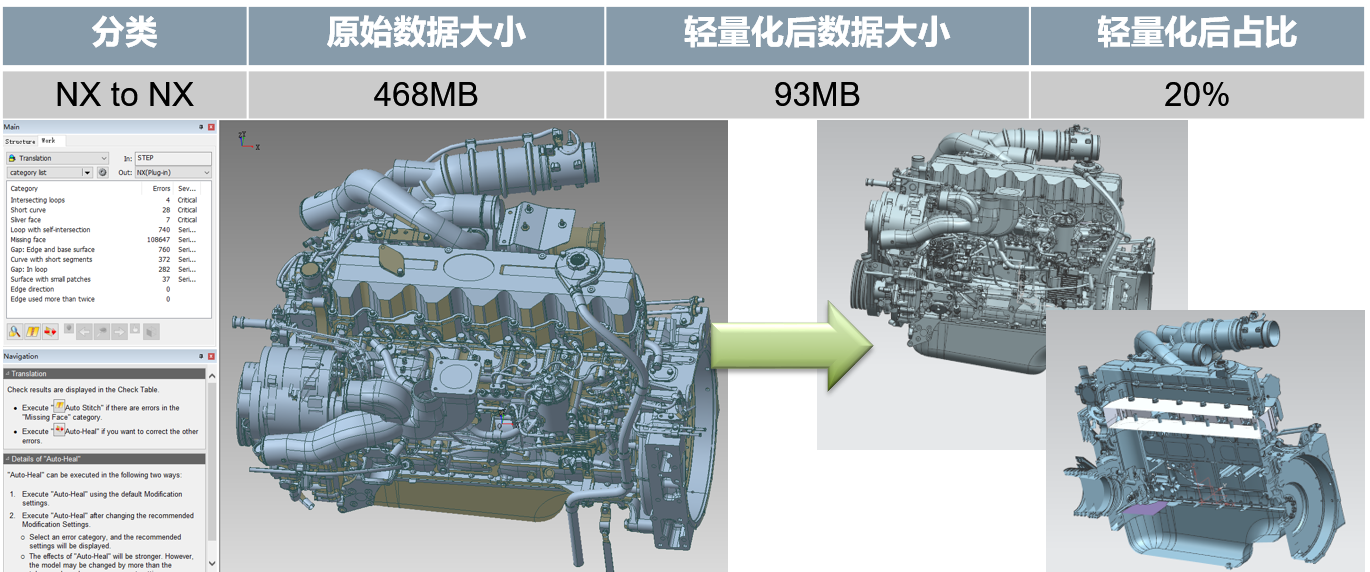

Remove feature details, such as holes, ribs, and chamfers, to simplify data in order to speed up processing through analysis.
Remove feature details, such as holes, ribs, and chamfers, to simplify data in order to speed up processing through analysis.

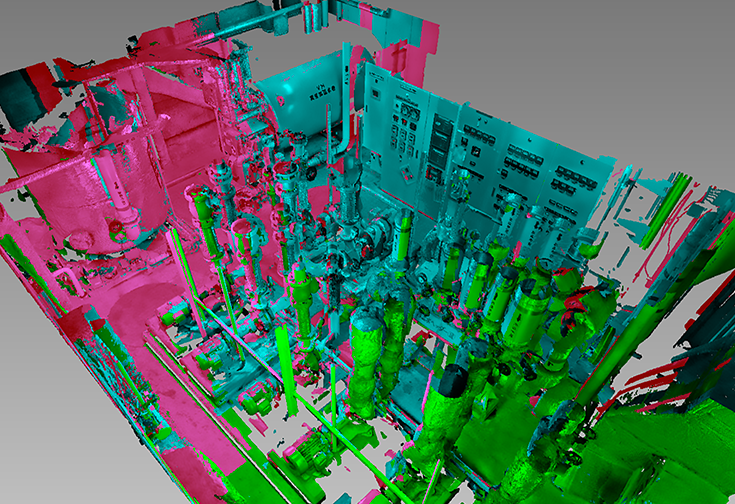

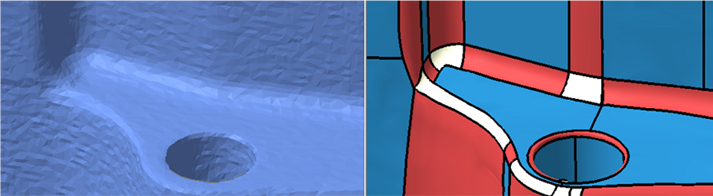

The point cloud data obtained by external scanning equipment can automatically generate 3d CAD data
Directly import 3D scan data from mainstream scanner manufacturers,
able to point cloud data is automatically spliced without using a reference target.
Automatic noise reduction removes unwanted personnel and vehicles from the data.Optimize point cloud quality and reduce data size.

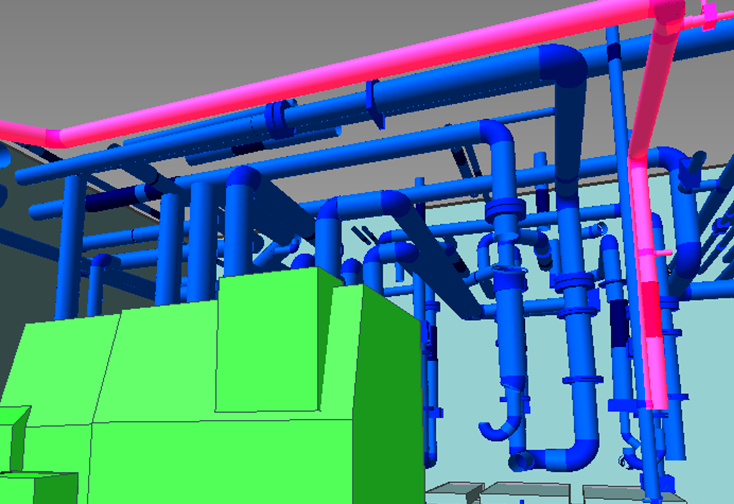

CAD models that automatically extract features from existing point cloud data, such as pipes, planes, ducts, and steel structures,support custom standard parts library to assign 3d model attribute parameters.
Point cloud data creation and export of triangular grid data is supported.

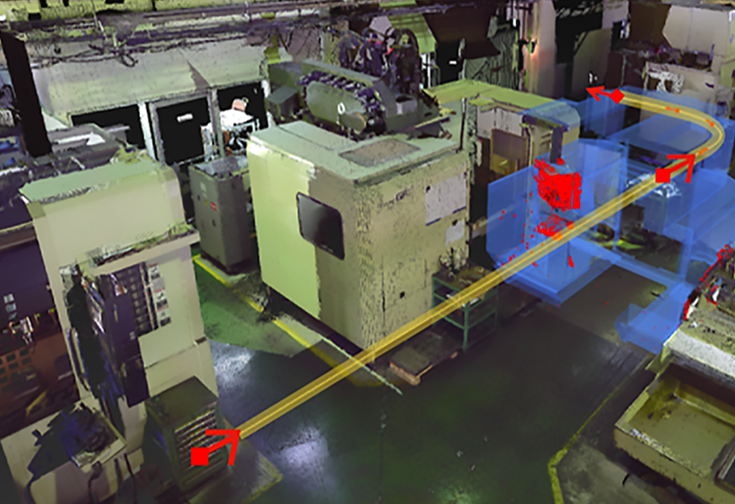

Easy to use measurement and analysis tools, checkpoint cloud and CAD model collision between with the deviation, reduces the spot analysis the workload, reduces the rework work situation.

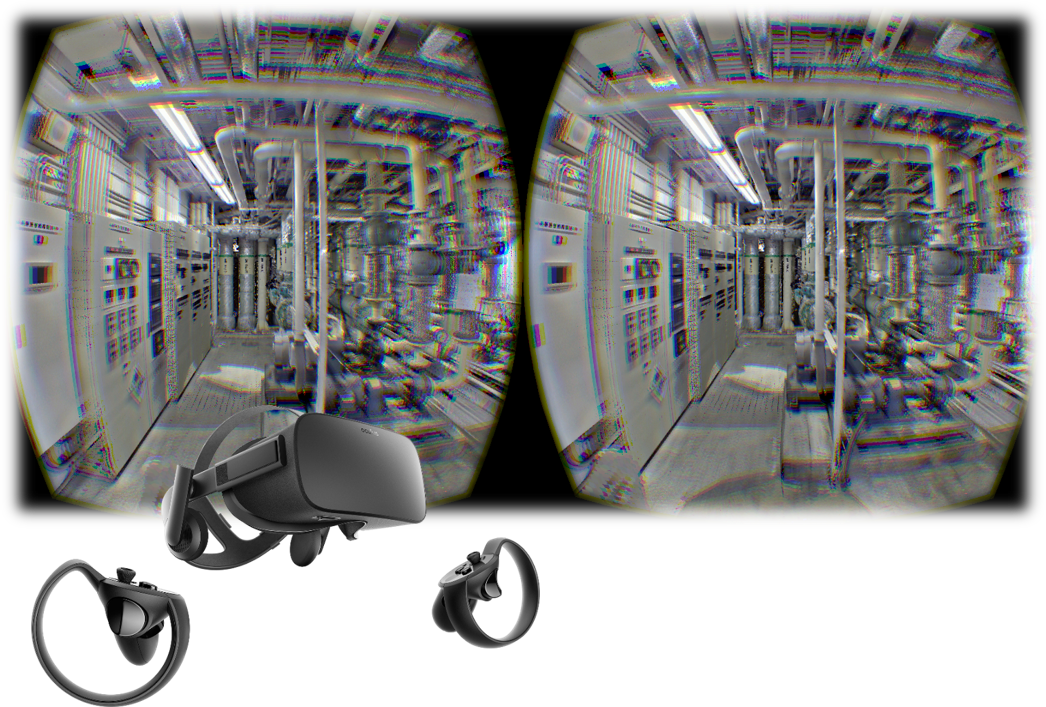

Experience your scanning data in an immersive way through a head-mounted virtual helmet,easily roam the 3d digital environment.
By scanning the digital package (SDDP), no software and license is required,your partners and customers can easily try scanning data to achieve data sharing and the purpose of engineering collaboration.
