a. ASFALIS TransServer EX8.2 new version update function introduction

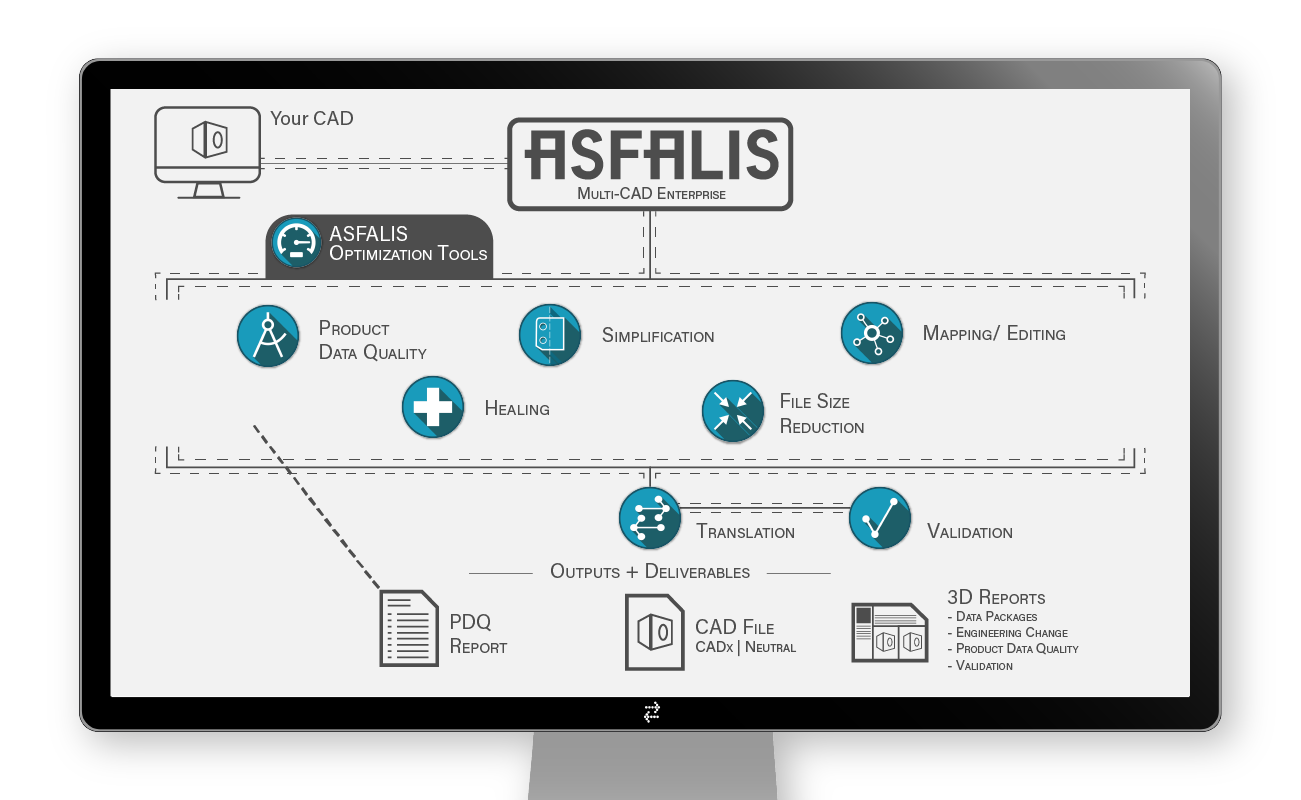

ASFALIS, as the core 3D digital and analog quality management and conversion platform under Yeji Technology, has also recently added engineering comparison, digital and analog simplification, closed entities, and DFM manufacturing processes on the basis of digital and analog quality management following customer needs and other functions. The highly anticipated version of EX8.2 was officially released on March 31, 2020. The latest version enhances the standard functions in the previous version and also fixes some of the problems in the previous version.
【Conventional】
Added support for integrated Windows authentication;
Support connecting to ATS from the client with IPv6 address;
Changed the batch download function;
When the download object is a single file, this function will directly download the file instead of the zip file;
Support to change the system language from the menu bar;
【Task submission/task details】
After submitting the task, you can move to the relevant "operation details" page;
[Server configuration name]
web.completion_job_entry.move_to_target_joblot_detail
When the following configuration is set to FALSE and the selection of files from existing files is not allowed, the related menu will be changed to hidden or unavailable;
[Server configuration name]
web.everyone.new_job.refer_file_sets
Enable the function of setting the component parameters of the sub-scheme when submitting tasks through "Run sub-tasks using other programs";
When moving to the "New Task" page, change to select "Start Operation" as the initial operation;
【Operation/operation type/operation monitoring/operation details】
Support setting the default task priority in "Operation Type";

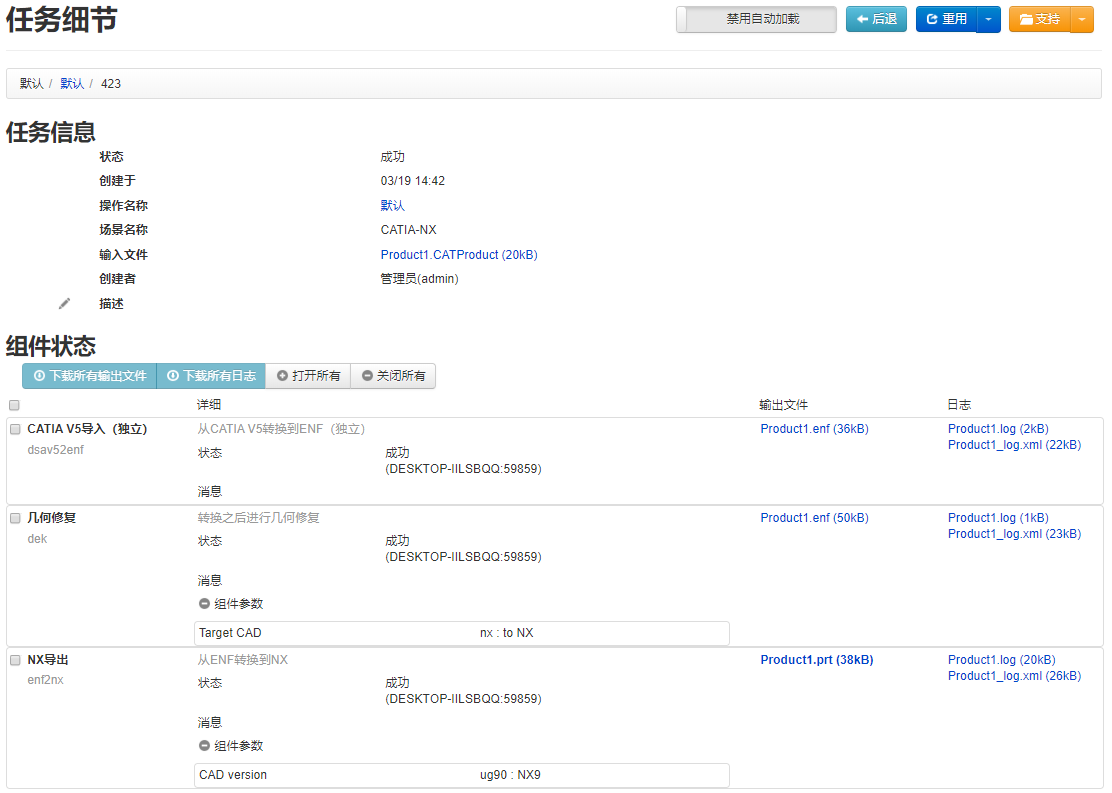

Support the function of changing the task name (=input file name) listed on the "Operation Details" page;
Please define "Task Alternative Name" on the "Add Scene" page or "Edit Scene" page as needed;
When the following configuration is set to FALSE and the selection of files from existing files is not allowed, the related menu will be changed to hidden or unavailable;
[Server configuration name]
web.everyone.new_job.refer_file_sets
Enhanced the function of folding long input file names as needed;
【Scene/Component】
Support the function of sending HTML mail through the "mail" component;
Support the function of including file download link in the message of "Mail" component;
Support to upload files (*.rb, *.json, *.pdf) exported from Data Package Studio in the "3D PDF Export" component;
【server configuration】
Add the new server configuration to the new server category "session" to specify the automatic logout time;
[Server configuration name]
web.autologout_idle_seconds
web.autologout_warning_seconds
Enhanced the method of defining nighttime when specifying nighttime duration;
For example, 21:00-6:00 (previous methods: 19:00-24:00, 0:00-6:00)
[Server configuration name]
scheduler.common.nighttime_in_utc
【Administrator】
Added the function of automatically deleting old log files;
[Server configuration name]
scheduler.common.log_retention_duration
Support to specify the listening port for slave node communication in the "Service Monitor" page;
Support to delete only resource files related to specific operations;
【Custom/API】
Added support for Web API CORS (Cross-Origin Resource Sharing);
Support to disable and restore "operations" through Web API;
API: / batch / job_lot_update
Support specifying multiple jobs in Web API to get job status;
API: /batch/job_state
Added a new Web API, you can directly download the Operation attribute of type file;
API: / batch / job_lot_attributes_download_direct
Added sample program for Web API;
API: /batch/upload
Support to customize the method of specifying component parameters;
*For details, please refer to Section 9.9 of the Administrator Manual (ASFALIS_TransServer_Admin_en.pdf)
【Other】
Upgraded Ruby version to 2.6.5;
Upgrade Ruby on Rails version to 6.0.0;
Upgrade the version of Apache to 2.4.38;
[BUG repair]
Fixed an issue where the search function did not work when the search keywords contained non-ASCII and case-sensitive characters;
Fixed an issue where the task scheduling function was terminated when an invalid configuration was set in the extended parameter function;
Fixed an issue where batch downloading from the "Operation Details" page on Internet Explorer or Microsoft Edge might fail;
Fixed an issue where the scene selection was not reset when changing the scene group on the "New Task" page
Solved the problem that the zip file download failed when using the batch download function and continuously clicking the download button
Fixed an issue where the wrong file was incorrectly identified as the root file of the assembly when the Creo Parametric assembly model was submitted as a zip file;
Fixed the problem of importing custom components with invalid internal names as valid components;
Fixed the problem that the value extended from the parameter "job.extracted_filesize_sum" is only the file size of the root file, not the sum of all files;
Fixed an issue where the performance of viewing the "task details" page or downloading files decreased after accumulating a large number of tasks;
Fixes the problem that when using JobDownload.exe with ZIP compression, sometimes the file cannot be downloaded according to the file size;
[Supported CAD format]
